SkyLark

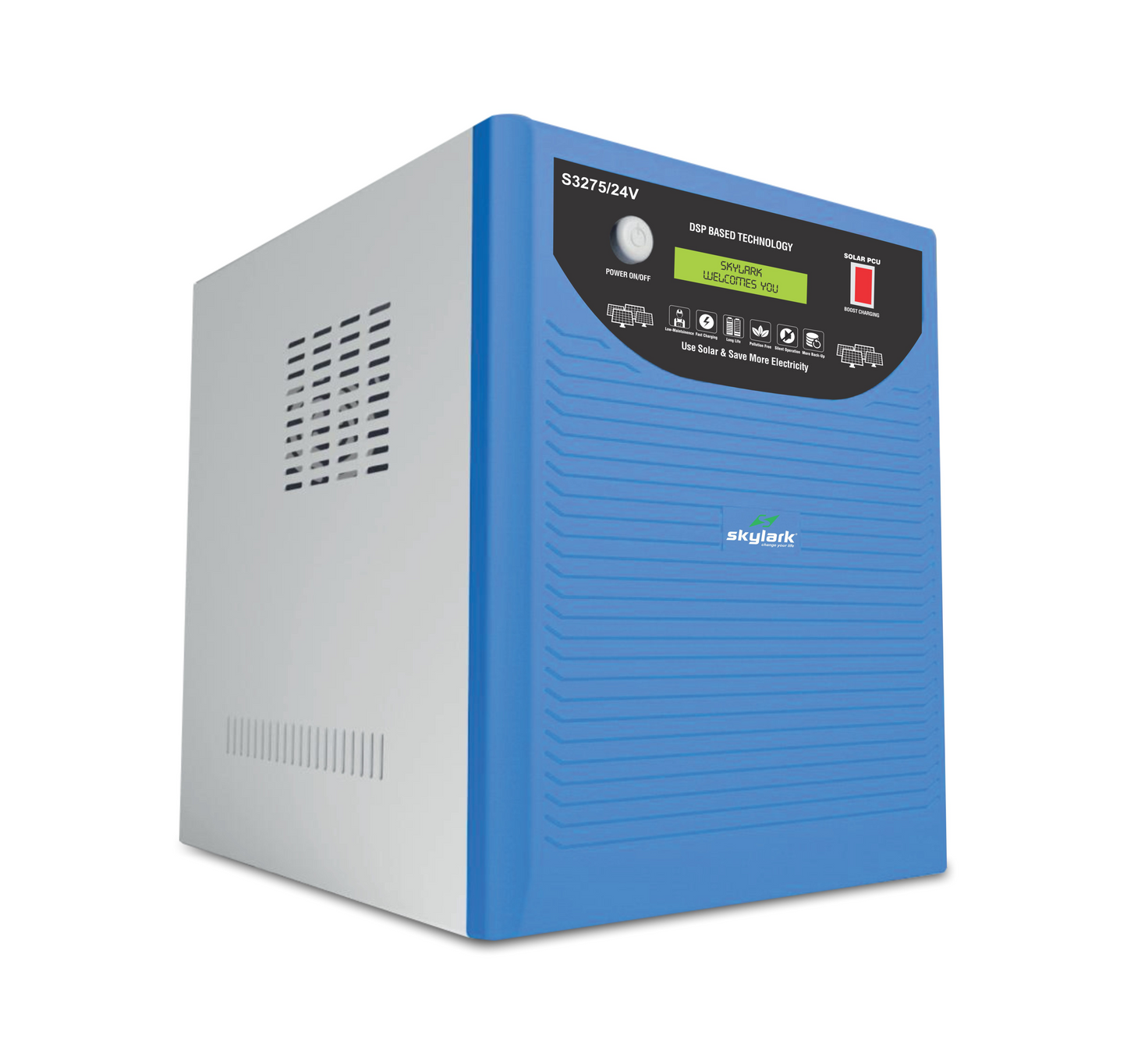

Solar PCU S2775/12V - PWM

Solar PCU S2775/12V - PWM

Rs. 12,603.00
Rs. 23,780.00 Rs. 12,603.00
Sale Sold out
Model S2775/24V
No Lood Current  ≤ 2.4A
Output Voltage <&> No Lood ≤ 240VAC ©24.0VDC
Battery Current Q Full Load 75A ±2A
Over Load Alarm 77A ±2A
Battery Low Alarm 21.2 ±0.2V
Battery Low Shutdown 20.8 ±0.2V
Short Circuits Protection Yes
Inverter Output Frequency 50 ± 0.1 Hz
UPS MODE
Mains Input Volatge Range Mains AC Low Cut 170V To 265V
170VAC ±10VAC
Mains AC Low Cut Recovery 180VAC ±10VAC
Mains AC High Cut 265VAC ±10VAC
Mains AC High Cut Recovery 255VAC ±10VAC
Maximum Change Over Time <8msec
W-UPS MODE
Mains Input Volatge Range 90V To 290V
Mains AC Low Cut 90VAC ±10VAC
Mains AC Low Cut Recovery 110VAC ±10VAC
Mains AC High Cut 290VAC ±10VAC
Mains AC High Cut Recovery 280VAC ±10VAC
Maximum Change Over Time <20msec
CHARGING MODE
Charging Current@220VAC 15.0 ±2A
Boost Voltage (Tub. Mode ) 28.8V ±0.4V
Boost Voltage (LA. Mode) 28.0V ±0.4V
Boost Mode (Enable Tub. Mode) 30.0V ±0.4V
Boost Mode (Enable LA Mode) 30.0V ±0.4V
Float Volatge 27.2V ±0.4V
Short Circuit Yes
PROTECTION
Battery Low Cut Off 1 Time
Over Load (Auto Retries) 4 Times
Short Circuits (Auto Retries) 3 Times
Over Temperature 3 Times
Battery Over Charge Yes
Input Protection Yes (Mains MCB Trip in Case of Short Circuit in Mains Mode)
PV PARAMETER
Rating 24V-50Amp.
Input PV Volatge Max. Voc 54V ±2V
Maximum Solar Arrey Power 2000W
Maximum PV Modules 450W
Type of Control Micro Controller
Type of Solar Charger PWM
Efficiency Of SCC >90%
PV Volatge High Protection 54V ±2V
PV High Current Protection 55Amp.
DISPLAY
16X2 LCD 20X4 LCD Mains Voltage, Output Voltage, Battery Charging, Battery Charged, Solar Voltage, Solar Current, Main MCB Trip and all protection alert with it’s remedy.
LED INDICATIONS Mains On. Charging, On. UPS, On. Battery Low, Overload
