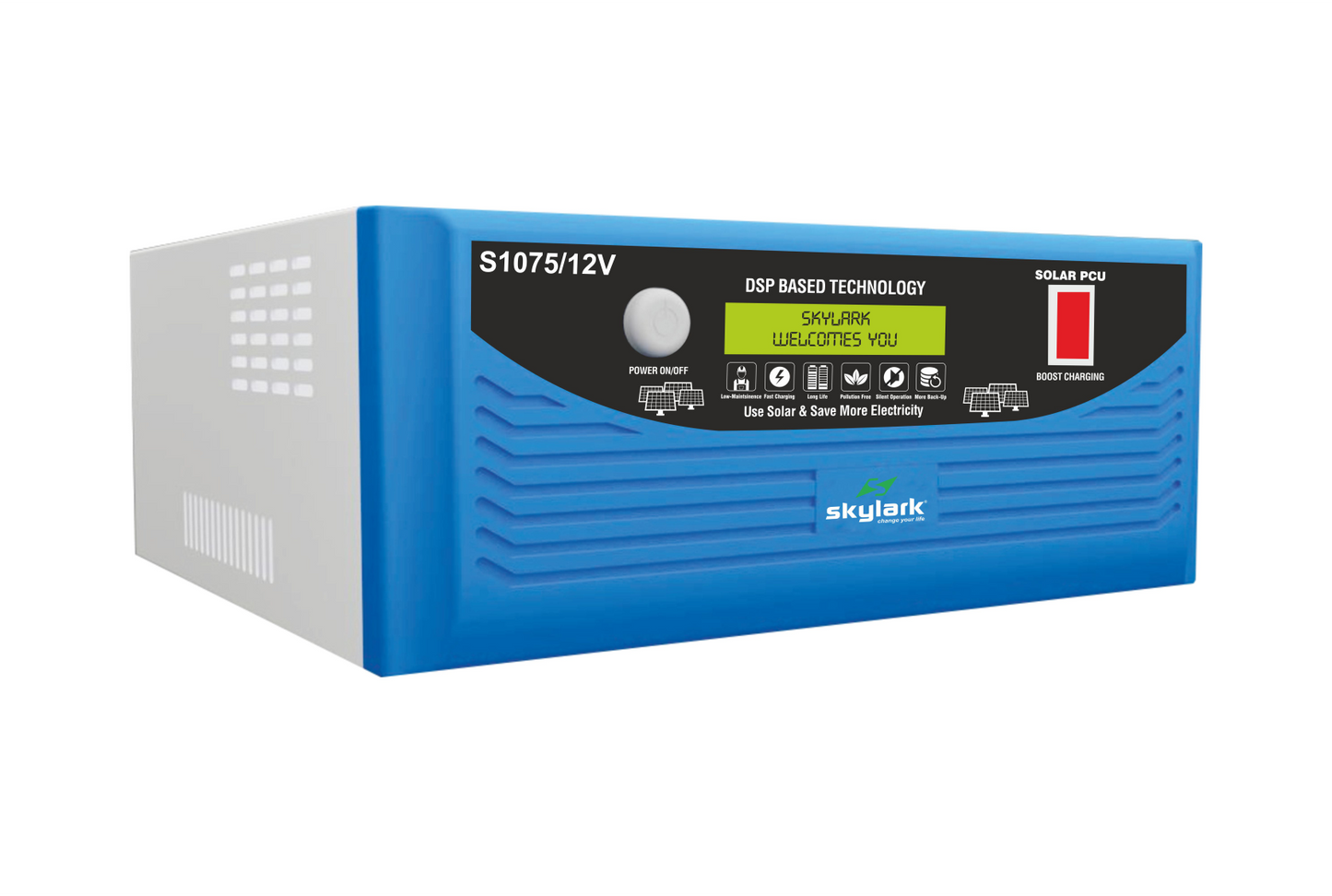

Solar PCU S1075/12V - PWM
Solar PCU S1075/12V - PWM
Regular price
Rs. 6,480.00
Regular price
Rs. 9,970.00
Sale price
Rs. 6,480.00
Unit price
per
Couldn't load pickup availability
| SPECIFICATIONS | |
| Model | S1075/12V |
| No Load Current | ≤ 2.0A |
| Output Voltage 0 No Load | ≤ 240VAC ©12.0VDC |
| Battery Current @ Full Load | 52A ±2A |
| Over Load Alarm | 54A ±2A |
| Battery Low Alarm | 10.6 ±0.2V |
| Battery Low Shutdown | 10.4 ±0.2V |
| Short Circuits Protection | Yes |
| Inverter Output Frequency | 50 ± 0.1 Hz |
| UPS MODE | |
| Mains Input Volatge Range | 170V To 265V |
| Mains AC Low Cut | 170VAC ±10VAC |
| Mains AC Low Cut Recovery | 180VAC ±10VAC |
| Mains AC High Cut | 265VAC ±10VAC |
| Mains AC High Cut Recovery | 255VAC ±10VAC |
| Maximum Change Over Time | <8msec |
| W-UPS MODE | |
| Mains Input Volatge Range | 90V To 290V |
| Mains AC Low Cut | 90VAC ±10VAC |
| Mains AC Low Cut Recovery | 110VAC ±10VAC |
| Mains AC High Cut | 290VAC ±1OVAC |
| Mains AC High Cut Recovery | 280VAC ±1OVAC |
| Maximum Change Over Time | <20msec |
| CHARGING MODE | |
| Charging Current©220VAC | 15.0 ±2A |
| Boost Voltage (Tub. Mode ) | 14.4V ±0.2V |
| Boost Voltage (LA. Mode) | 14.0V ±0.2V |
| Boost Mode ( Enable Tub. Mode) | 15.0V ±0.2V |
| Boost Mode ( Enable LA Mode) | 15.0V ±0.2V |
| Float Volatge | 13.6V ±0.2V |
| Short Circuit | Yes |
| PROTECTION | |
| Battery Low Cut Off | 1 Time |
| Over Load (Auto Retries) | 4 Times |
| Short Circuits (Auto Retries) | 3 Times |
| Over Temperature | 3 Times |
| Battery Over Charge | Yes |
| Input Protection | Yes (Mains MCB Trip in Case of Short Circuit in Mains Mode) |
| PV PARAMETER | |
| Rating | 12V-30Amp. |
| Input PV Volatge Max. Voc | 28V ±2V |
| Maximum Solar Arreg Power | 600W |
| Maximum PV Modules | 190W |
| Type of Control | Micro Controller |
| Type of Solar Charger | PWM |
| Efficiency Of SCC | >90% |
| PV Volatge High Protection | 28V ±2V |
| PV High Current Protection | 32Amp. |
| DISPLAY | |
| 16X2 LCD | Mains Voltage, Output Voltage, Battery Charging, Battery Charged, Solar Voltage, Solar Current, Main MCB Trip and all protection alert with it's remedy. |
| 20X4 LCD | |
| LED INDICATIONS | Mains On, Charging, On, UPS, On, Battery Low, Overload |
