SkyLark

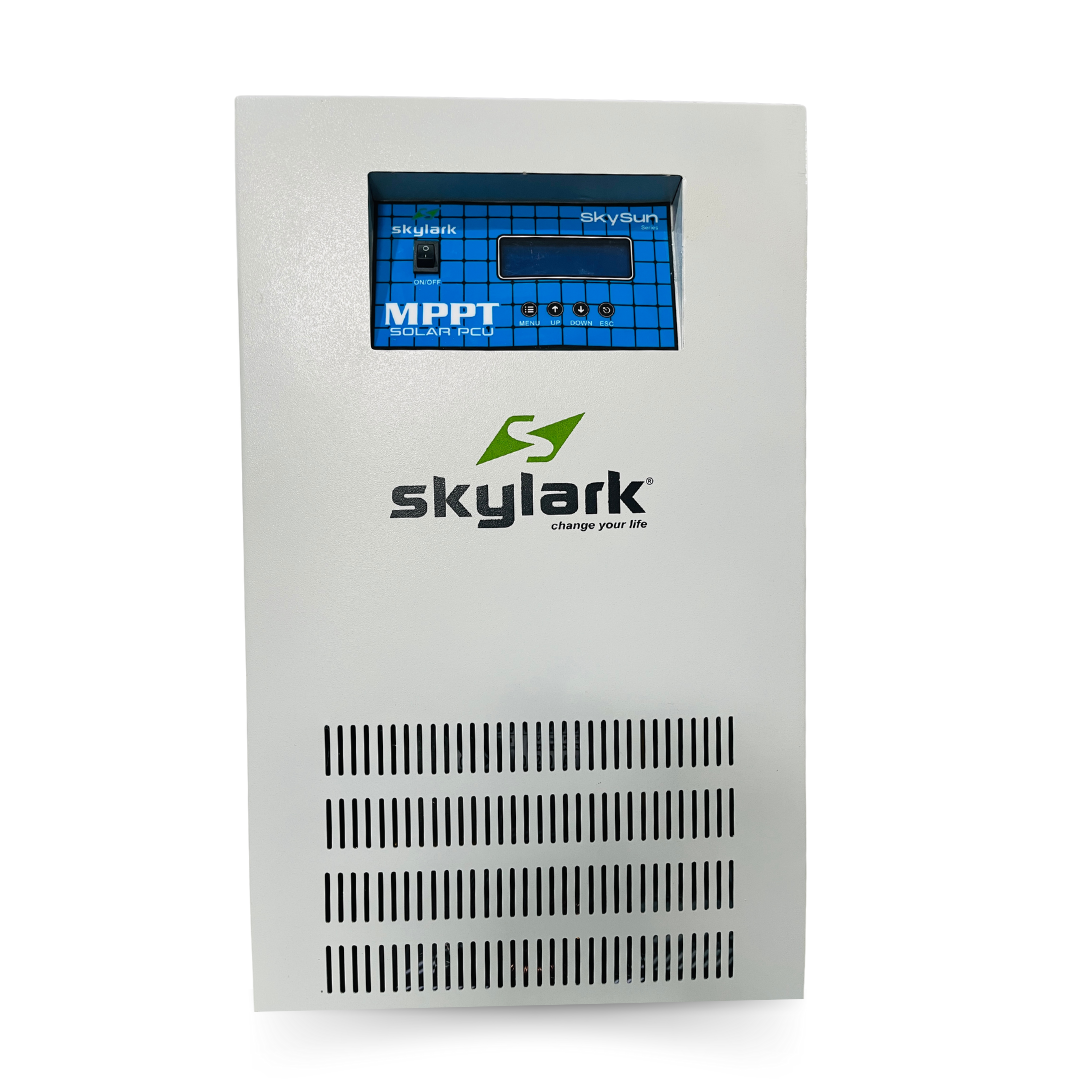

Solar PCU MPPT 10KVA/120V

Solar PCU MPPT 10KVA/120V

Regular price Rs. 119,598.00
Regular price Rs. 192,900.00 Sale price Rs. 119,598.00
Sale Sold out
Model 10KVA
OPERATING DC VOLTAGE 120
BATTERY CAPACITY 100-300
SPV PARAMETERS
SPV VOC RANGE 180-450
MAX SOLAR POWER 10
MAX SOLAR CHARGE CONTROL 70
COMPATIBLE SPV PANELS 36/60/72
MPPT BASED CHARGE CONTROLLER
SWITCHING POWER DEVICE IGBT
CONTROLLER DSP CONTROLLER
BATTERY CURRENT LIMIT FROM SPV 20
SPV EFFICIENCY >95%
BATTERY
GRID DISCONNECT SPV PRESENT (PCU/SMART) ACHIEVING THE BOOST VOLTAGE WITH 2 MINUTE DELAY
GRID RECONNECT (PCU/SMART) 11.8
LOW ALARM 10.8
LOW CUTOFF RECOVERY BY SPV 10.6
LOW CUTOFF 10.4
HIGH CUTOFF 16.5
HIGH CUTOFF RECOVERY 15.5
BOOST CHARGING VOLTAGE BY SPV TUB
GRID BOOST CHARGING VOLTAGE
GRID FLOATING VOLTAGE
OUTPUT
OUTPUT WAVE FORM PURE SINE WAVE
NO LOAD VOLTAGE 230+/-2%
NO LOAD FREQUENCY 50+/-2%
OVERLOAD CURRENT @ 100% LOAD 34.7
OVERLOAD RETRY @UPS N/A
OVERLOAD RETRY @ INV 3
CHANGE OVER MAINS TO INVERTER <10mS
CHANGE OVER INVERTER TO MAINS <5mS
GRID
NO.OF PHASE/WIRE SINGLE PHASE/3WIRE-(P.N.E)
VOLTAGE RANGE INV MODE 90-290+/-2%
VOLTAGE RANGE UPS MODE 160 - 260+/-2%
FREQUENCY RANGE 45-55+/-2%
DISPLAY
PARAMETERS 20X4 LCD
VOLTAGE CURRENT, POWER & FREQUENCY ENERGY
VOLTAGE & FREQUENCY
VOLTAGE.CURRENT, POWER & ENERGY
VOLTAGE & CHARGING CURRENT
STATUS/FAULTS INVERTER STATUS, MAINS STATUS, CHARGER STATUS, SOLAR STATUS & BATTERY STATUS, CHARGING STATUS
INVERTER
POWER SWITCHING DEVICE USE IGBT
EFFICIENCY >85%
OUTPUT POWER FACTOR 0.8
SWITCHES USED INV ON/OFF & BATT SOFT START
BUZZER
AUDIABLE ALARM BUZZER
PROTECTION LOW BATTERY OVERLOAD, SHORT CIRCUIT, PV OVER VOLTAGE, SPV SURGE, HIGH TEMP
COOLING FAN
OPERATING TEMPERATURE 0-45°C
OPERATING HUMIDITY 0.95
NOISE 2 MTR DISTANCE 50
PROTECTION CLASS (IP) 20
DIMENSION (LXWXH) 570X330X590
NET WEIGHT 80.1
GROSS WEIGHT 85.7
